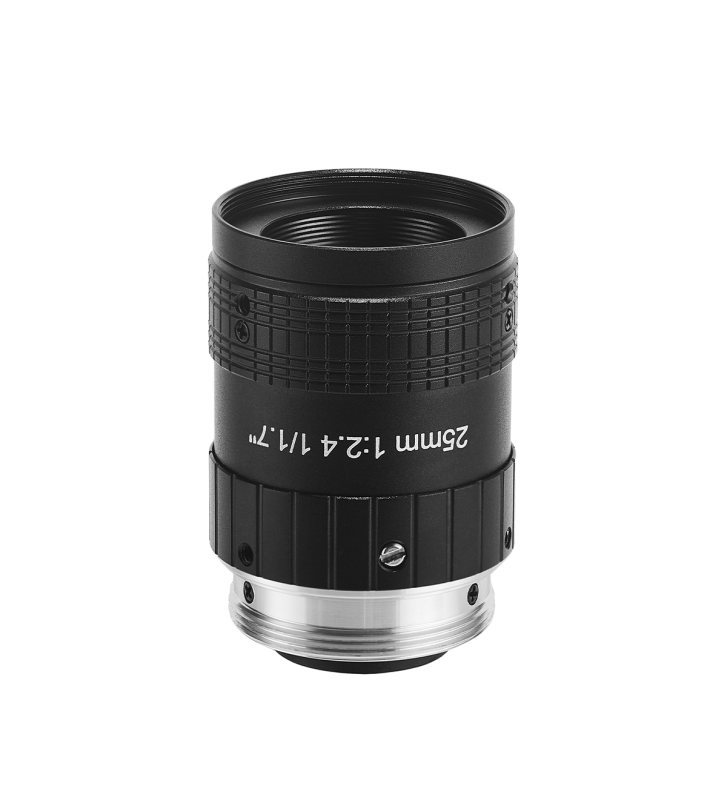

CH674A 1/1.7" 25mm 12MP Machine Vision Lens
$79.00
- Brand: CHANCCTV
- Product Code: CH674A
- Availability: In Stock
- Ex Tax: $79.00
The CH674A is an industrial fixed-focus lens designed for high-precision long-distance detection and narrow space monitoring. With its professional optical performance and flexible adaptability, it has become an ideal solution for precision measurement, security monitoring and industrial automation.
The lens has the following features:
High-resolution imaging: Supports 12-megapixel high-resolution imaging, which can capture clear and delicate image details to meet the needs of high-precision visual inspection and measurement tasks.
Adapt to a variety of chip sizes: Can perfectly adapt to sensors with chip sizes such as 1/2", 1/3", etc., to ensure image quality at high resolution.
C-mount standardized adaptation: Compatible with mainstream C-mount cameras, seamless integration of existing visual systems; M27×P0.5 filter interface supports quick installation of accessories such as protective glasses and infrared filters to adapt to complex industrial environments.
Wide aperture range: The aperture value range is F2.4 to F16, which can provide stable image quality under different lighting conditions and ensure image brightness and contrast.
Detail capture capability: The horizontal field of view angle is 16.8°, providing a narrower field of view, suitable for medium and long-distance shooting and application scenarios that require higher detail capture.
The main application scenarios of this lens are as follows:
Precision detection: In the fields of automated production lines, machine vision detection, etc., it provides high-resolution and low-distortion images for high-precision scenarios such as semiconductor packaging, PCB SMT detection, and precision parts measurement.
Security monitoring: Suitable for long-distance target monitoring and corridor/entrance and exit narrow area monitoring.
Industrial automation: Used for AGV navigation and obstacle avoidance, logistics sorting systems, robotic arm guidance, etc.
| Specifications And Dimensions | |
| Focal Length | 25mm |
| Image Size | 1/1.7" |
| Pixels And Aperture | |
| Resolution | 12MP |
| F-NO | 2.4-16 |
| Field Of View | |
| FOV (H*V*D) | 16.8°*12.8°*21.2° |
| Distortion | |
| TV Distortion | <0.1% |
| Mount And Filter | |
| Mount | C-Mount |
| Filter Size | M27*P0.5 |
