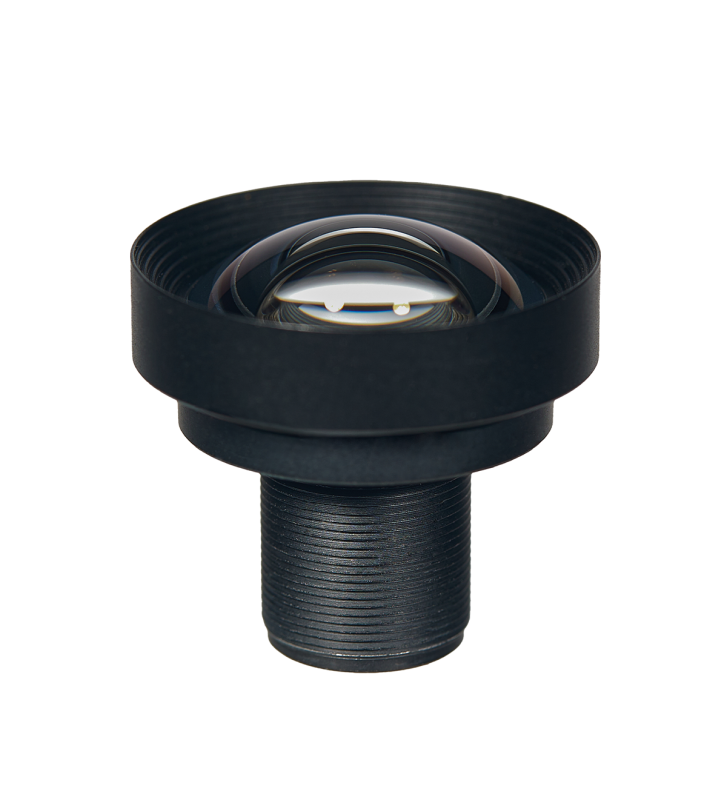

CH3771AB 1/1.8" 4mm 16MP Low Distortion Lens

$59.00

  • Brand: CHANCCTV
  • Product Code: CH3771AB
  • Availability: In Stock
  • Ex Tax: $59.00

Tags: low distortion lens, 4mm low distortion lens, 1/1.8 inch low distortion lens

CH3771AB is an M12 mount low-distortion lens designed for high-resolution imaging. With its excellent optical performance and wide adaptability, it has become an ideal choice for industrial vision, security monitoring, intelligent transportation and other fields.

Its core highlights are as follows:

Ultra-high resolution: Supports 16 million pixel imaging, provides delicate image details, and meets the needs of high-precision visual inspection and image recording.

Low distortion design: Adopts advanced optical design to effectively reduce image distortion, ensure the true restoration of the picture, and is suitable for high-precision measurement and analysis scenes.

Excellent optical performance: 4mm focal length with F2.8 aperture ensures clear, bright and high-quality images under various lighting conditions.

Wide adaptability: Specially optimized for 1/1.8-inch target surface sensors, it can perfectly adapt to a variety of mainstream chips such as IMX678, IMX577, OS08A10, and has strong compatibility.

Compact and durable: Adopts M12 mount design, small size, easy to integrate into various compact devices, and has excellent durability.

Its main application scenarios are:

Industrial visual inspection: Suitable for industrial applications such as high-precision parts inspection, dimensional measurement, and surface defect identification.

Security monitoring: Provides clear, low-distortion monitoring images, suitable for indoor and outdoor security scenarios, and improves monitoring efficiency.

Intelligent transportation: Used in scenarios such as license plate recognition and traffic flow monitoring to ensure clear and accurate images.

Machine vision: Provides high-resolution, low-distortion visual support for robots and automation equipment.

Medical imaging: Suitable for high-precision imaging requirements in medical equipment, such as endoscopes and microscopes.

The CH3771AB low distortion lens is an ideal choice in the field of high-precision imaging with its high resolution, low distortion, and wide adaptability. Whether it is industrial inspection, security monitoring, or intelligent transportation, this lens can provide users with stable and clear imaging effects, helping to achieve precise visual solutions.

Specifications And Dimensions
Focal Length 4mm
Image Size 1/1.8"
Dimensions ф26.00*L24.38mm
TTL 31mm
Lens Structure 8G
Pixels And Aperture
Resolution 16MP
F-NO 2.8
Field Of View
FOV (H*V*D) 96°*60°*105°
Distortion
TV Distortion <-3.6%
Mount And Filter
Mount M12*P0.5
IR Filter IR650nm
