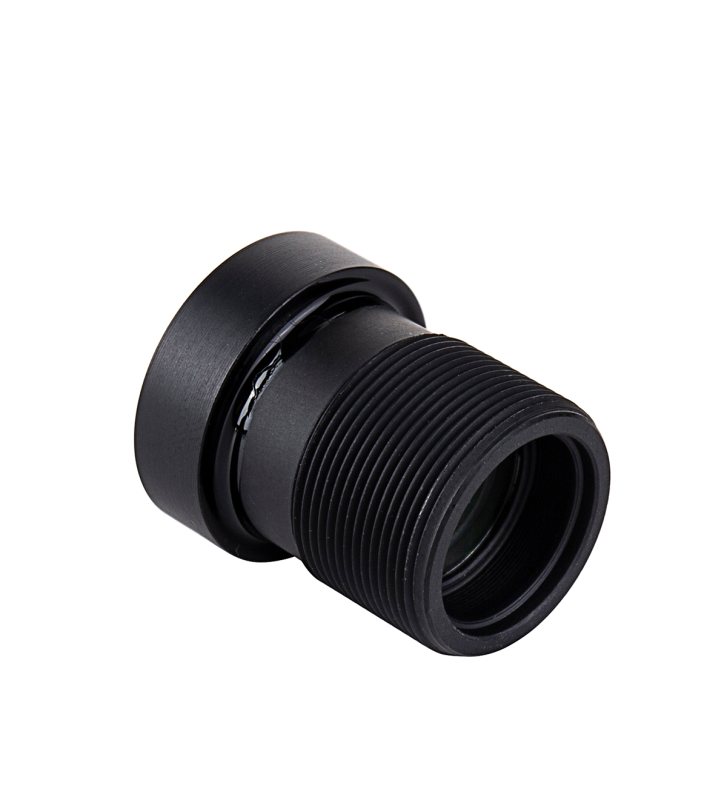

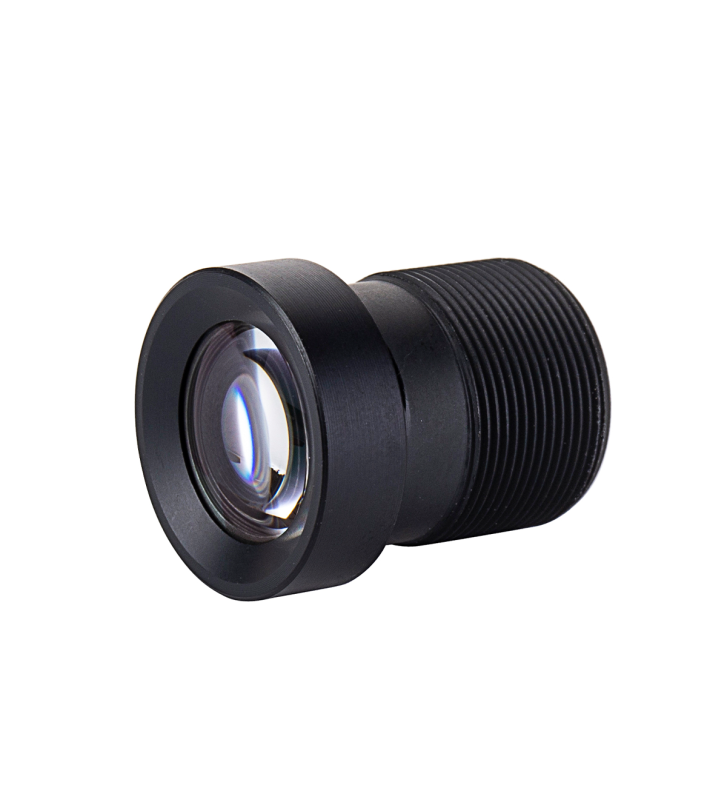

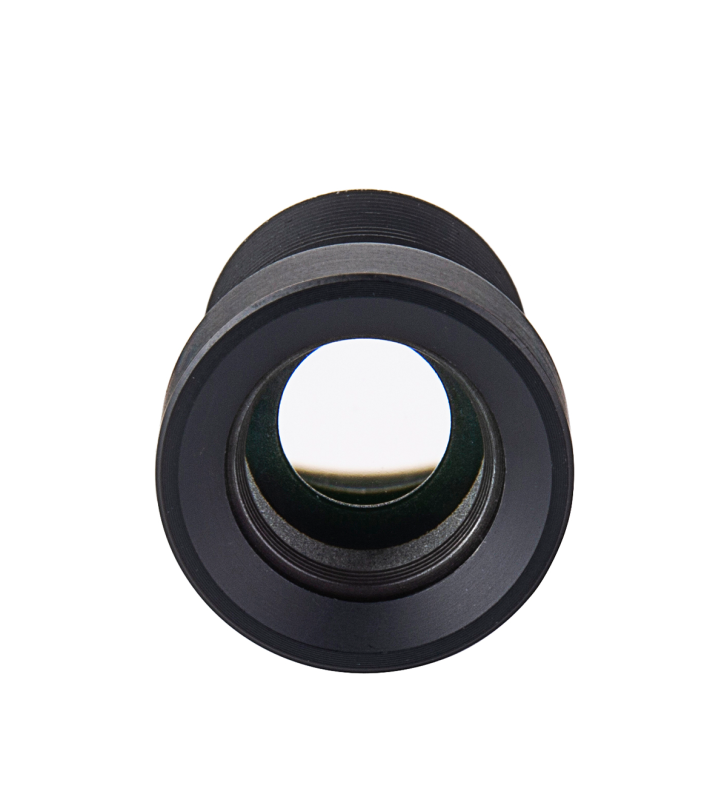

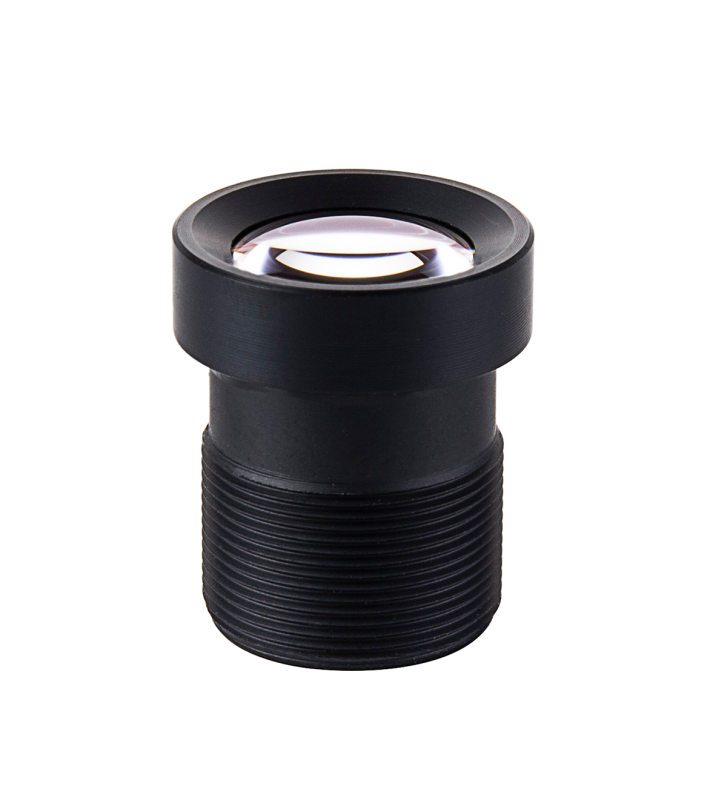

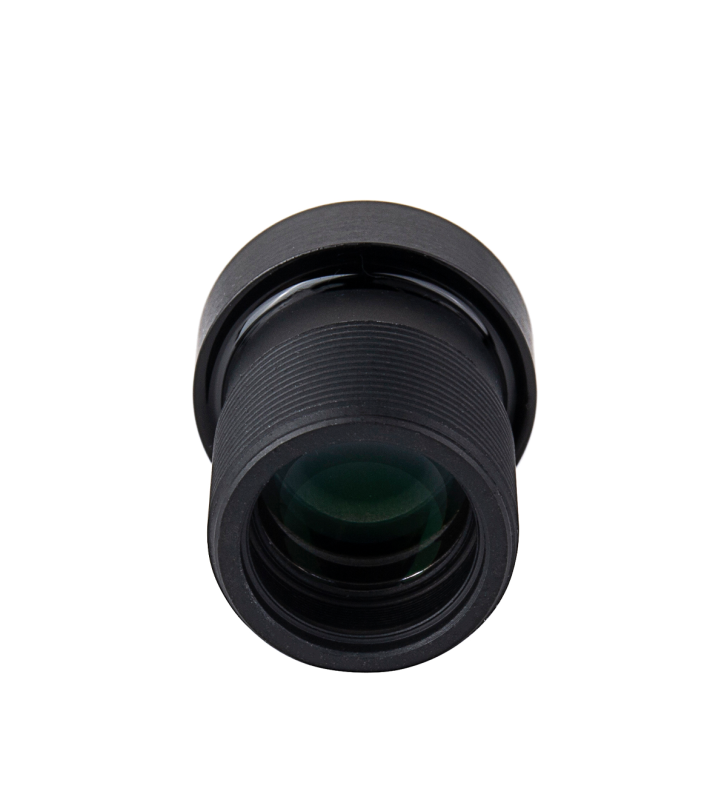

CH3770AB 1/1.8" 16mm 16MP Low Distortion Lens
$16.50
- Brand: CHANCCTV
- Product Code: CH3770AB
- Availability: In Stock
- Ex Tax: $16.50
The CH3770AB is a high-performance lens designed for high-precision visual applications, suitable for industrial inspection, security monitoring, machine vision and other fields.
It adopts a 1/1.8" target surface design with a 16mm focal length, which can provide clear and stable imaging effects in long-distance shooting. The lens supports 16 million pixels, ensuring more delicate detail capture to meet the needs of high-resolution application scenarios.
CH3770AB has a large aperture of F2.8, which ensures excellent image quality even in low-light environments. Its M12 mount design is highly compatible and easy to install and integrate quickly. The lens is made of all-glass material, with excellent optical performance and high durability, suitable for long-term stable operation.
In terms of field of view, CH3770AB provides a moderate field of view of 26.8° horizontal (H), 15.2° vertical (V), and 30.6° diagonal (D), which is particularly suitable for application scenarios that require accurate capture of target details. At the same time, its low distortion characteristics ensure the clarity and accuracy of the image edges, further improving the imaging quality.
Specifications And Dimensions | |
Focal Length | 16mm |
Image Size | 1/1.8" |
Dimensions | ф14.0*L16.20mm |
TTL | 21.66mm |
Lens Structure | 6G |
Pixels And Aperture | |
Resolution | 16MP |
F-NO | 2.8 |
Field Of View | |
FOV (H*V*D) | 26.8°*15.2°*30.6° |
Distortion | |
TV Distortion | <-0.35% |
Mount And Filter | |
Mount | M12*P0.5 |
IR Filter | IR650nm |
