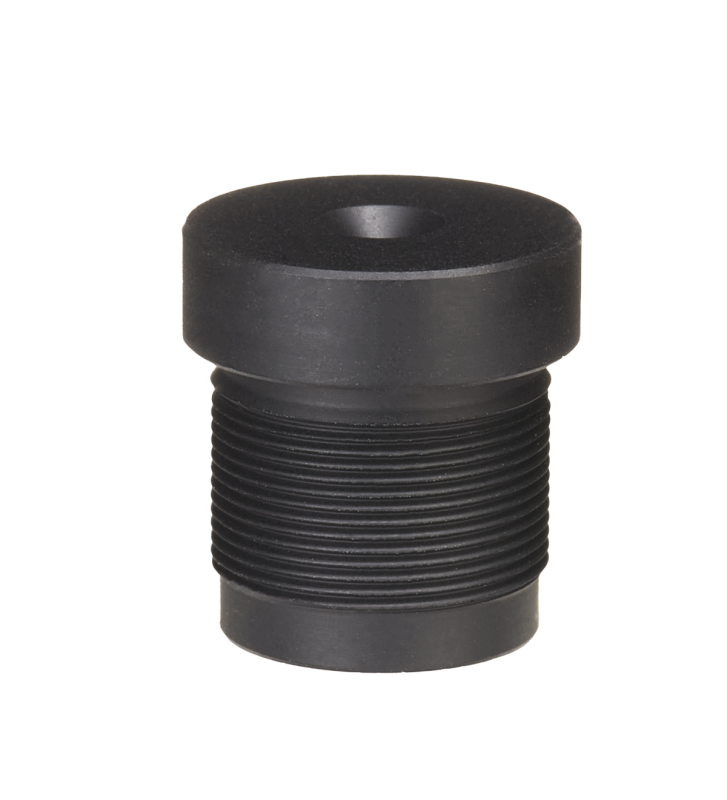

CH3911A 2/3" 16mm 8MP Low Distortion Lens

CH3911A is a low-distortion optical lens designed for long-distance high-definition imaging and high-precision detection. It adopts a 16mm focal length and a 2/3" target surface combination, with a large aperture of F2.2 and an all-glass lens group. It is compatible with 2/3", 1/2", 1/3" and other sensors. It is suitable for scenarios such as smart security, industrial inspection, and drone aerial survey, providing high resolution and all-weather imaging performance.

The main product features of this lens are:

High-resolution imaging: The CH3911A lens supports up to 8 million pixels of imaging, which can provide clear and detailed images to meet the needs of high-precision imaging.

Low distortion design: The lens adopts advanced optical design with extremely low distortion rate, ensuring the authenticity and accuracy of imaging, and is particularly suitable for application scenarios that require precise measurement and high-precision imaging.

Large aperture and low light advantage: F2.2 ultra-large aperture increases the amount of light entering, and the image is clear in dark light environments. The shallow depth of field highlights the subject and enhances the layering of the picture.

Flexible adaptation of multiple chips: Compatible with 2/3" to 1/3" sensors, adapt to mainstream chips (such as AR2020), reduce development costs, and improve system scalability.

Extremely compact design: M12 standard interface+TTL20.17mm total length, lightweight body adapts to embedded devices, and all-metal structure is dust-proof and shock-proof.

All-glass lens: Adopts all-glass lens with high light transmittance and low dispersion characteristics to ensure stable and reliable image quality, and provide high-quality imaging effects even in low light conditions.

Narrow field of view: With a horizontal field of view of 35.3°, it can capture a narrow range of scenes, suitable for long-distance monitoring and shooting applications while maintaining image clarity and details.

The main application scenarios of this lens are:

Security monitoring: Suitable for indoor surveillance cameras, access control systems, vehicle-mounted cameras, etc., providing panoramic monitoring and reducing monitoring blind spots.

Industrial inspection: In the fields of automated production lines, machine vision inspection, etc., it provides high-resolution and low-distortion images to help improve production efficiency and quality.

Medical equipment: Can be used for medical equipment such as endoscopes and microscopes to provide clear images and meet the high requirements of medical imaging.

UAV aerial photography: In drone aerial photography, the ultra-wide-angle field of view can capture a wider scene and provide a more impactful picture.

Virtual reality (VR) and augmented reality (AR): Provides high-quality images for head-mounted displays and glasses to enhance user experience.
