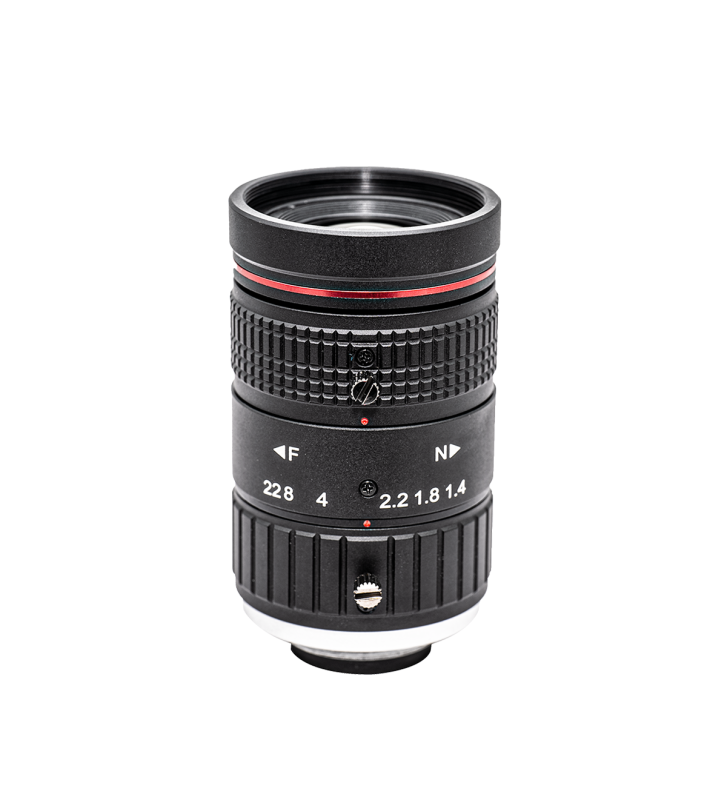

CH3683B 1" 16mm 12MP IR Corrected Lens
$145.00
- Brand: CHANCCTV
- Product Code: CH3683B
- Availability: In Stock
- Ex Tax: $145.00
The CH3683B 16mm F1.4 large aperture lens, designed specifically for the fields of pan-security and smart IoT, redefines the imaging benchmark for multi-sensor platforms with its full-frame compatibility, ultra-low illumination performance and intelligent optical design.
CH3683B innovatively supports free matching of chip sensors of multiple sizes, such as 1", 2/3", and 1/2". Combined with a 16mm focal length and a 45° horizontal field of view, it can not only meet the high-resolution requirements of long-distance face recognition and license plate capture in smart cities, but also adapt to close-range precise obstacle avoidance scenarios such as industrial robots and AGV navigation. One lens covers multi-dimensional perception needs.
The F1.4 ultra-large aperture and precision aspherical lens group achieve 12-megapixel full-color imaging at ultra-low illumination of 0.003lux. The upgraded IR correction algorithm ensures the confocal accuracy during the day and night, and the dual filter automatic switching technology is used to ensure that the night imaging details are clear regardless of strong light, backlight or total darkness.
CH3683B has day and night confocal function, and can maintain excellent imaging performance in both visible light and infrared light environments, which is particularly suitable for security monitoring at night or in low light conditions.
With C-mount design, CH3683B is easy to install and compatible with a variety of industrial cameras and monitoring equipment. Its infrared correction function effectively eliminates the focus offset problem under infrared light, ensuring that the picture is always clear and sharp. The compact design and sturdy structure make it suitable for a variety of scenarios such as urban security, traffic monitoring, industrial inspection, and intelligent transportation.
Whether it is day or night, CH3683B can provide stable, clear, high-quality images, which is an ideal choice for security, industrial vision and machine vision.
| Specifications And Dimensions | |
| Focal Length | 16mm |
| Image Size | 1" |
| Dimensions | ф40*L63.50mm |
| Pixels And Aperture | |
| Resolution | 12MP |
| F-NO | 1.4 |
| Field Of View | |
| FOV (H*V*D) | 45.3°*34.3°*55.6° |
| Distortion | |
| OPT Distortion | <-3.95% |
| Mount And Filter | |
| Mount | C-Mount |
| IR Correction | Yes |
