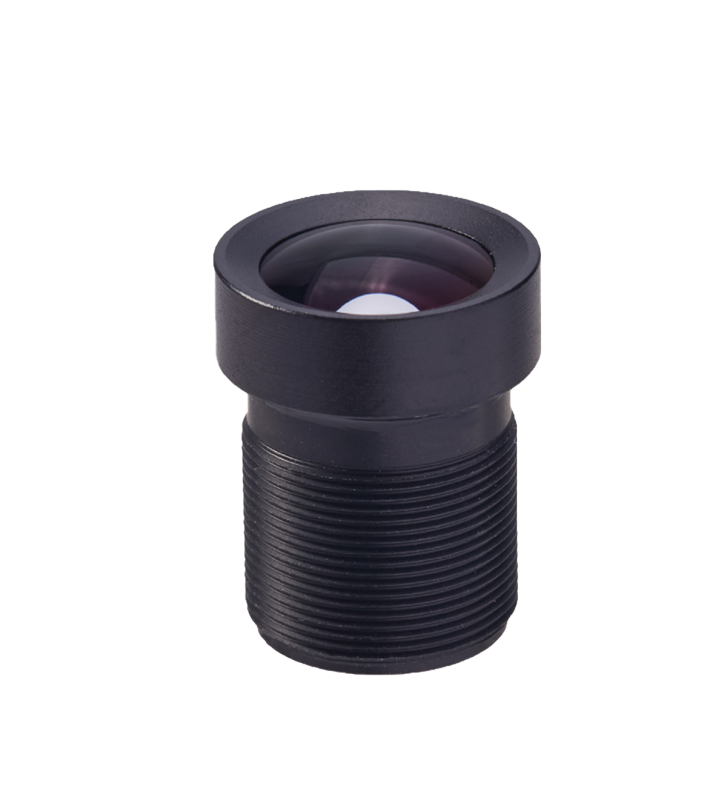

CH3773AB 1/1.8" 12mm 16MP Low Distortion Lens
$16.50
- Brand: CHANCCTV
- Product Code: CH3773AB
- Availability: In Stock
- Ex Tax: $16.50
CH3773AB is a high-quality lens designed for high-precision imaging needs. It is suitable for industrial inspection, security monitoring, machine vision and other fields.
It adopts a 1/1.8" target surface design with a 12mm focal length, which can provide clear and stable imaging effects. The lens supports 16 million pixels, ensuring more delicate detail capture to meet the needs of high-resolution application scenarios.
CH3773AB has a large aperture of F2.8, which ensures excellent image quality even in low-light environments. Its M12 mount design is highly compatible and easy to install and integrate quickly. The lens is made of all-glass material, with excellent optical performance and high durability, suitable for long-term stable operation.
In terms of field of view, CH3773AB provides a wide field of view of 35° horizontal (H), 20.4° vertical (V), and 40° diagonal (D), which can cover a larger shooting range. At the same time, its low distortion characteristics ensure the clarity and accuracy of the image edges, which is particularly suitable for application scenarios with strict requirements on image quality.
In addition, the CH3773AB has a TTL of 26mm and a compact structure, making it easy to integrate into various devices. Whether it is industrial automation, intelligent transportation, or security monitoring, the CH3773AB can provide users with excellent imaging solutions to help achieve more efficient and accurate visual applications.
| Specifications And Dimensions | |
| Focal Length | 12mm |
| Image Size | 1/1.8" |
| Dimensions | ф14.00*L18.00mm |
| TTL | 26mm |
| Lens Structure | 6G |
| Pixels And Aperture | |
| Resolution | 16MP |
| F-NO | 2.8 |
| Field Of View | |
| FOV (H*V*D) | 35°*20.4°*40° |
| Distortion | |
| OPT Distortion | <-0.01% |
| Mount And Filter | |
| Mount | M12*P0.5 |
| IR Filter | IR650nm |
